GREENCLAD INSULATED FACADE SYSTEM

What is GreenClad

GreenClad™ Insulated Facade system or GreenClad Direct Fix Cladding system is a reinforced lightweight insulated cladding system for use on exterior walls of buildings. Commonly referred to as Exterior Insulation and finishing systems (EIFS). It is made from “M” grade expanded polystyrene (EPS) moulded panels directly anchored to wall frame, coated and reinforced with an exterior GreenClad Coating System to give an exterior wall having a durable structure and weatherproof property. In this system, the EPS panels are directly anchored to the building’s wall frame.



GreenClad Direct Fix EIFS Cladding System Attributes

GreenClad Direct Fix cladding system adds minimum weight to the structure and it contributes to the improvement of the building’s energy efficiency by providing first stage insulation and weatherproofing, having good structural stability, thermal insulation and decorative exterior wall finish

Structure Stability

Weatherproofing

Thermal Insulation

Decorative exterior wall finish

GreenClad Direct Fix System has two panel options

Plain EPS panel

Pre--Rendered panel are factory coated with polymer- -modified render and alkaline--resistant fibreglass mesh, ready to be anchored to frame and thereafter coated with only mesh on joints and not entire panel

Pre--Rendered EPS panel

Pre--Rendered panel are factory coated with polymer- -modified render and alkaline--resistant fibreglass mesh, ready to be anchored to frame and thereafter coated with only mesh on joints and not entire panel

Plain EPS Panel System specifications

Plain EPS panels are used in this system, panels are fastened and fixed directly on to timber or steel framed building having a Weatherproof Breathable Wall Wrap (Sarking) inbetween. Starter Channel Bead is fixed on to the bottom frame in required size. The panels are installed horizontally, and fastened directly into the studs using screws and plastic washers The Panel joints are then sealed with PU Foam Adhesive, Corner angle beads are fixed and an Adhesive fibre glass mesh is stuck across the entire panel surface or mesh is embedded into the dry patch render and the panels are rendered and finished as per the GreenClad coating system consisting of two coats of polymeric render (base coat) and one coat of acrylic texture coat having a minimum coating thickness of 6mm

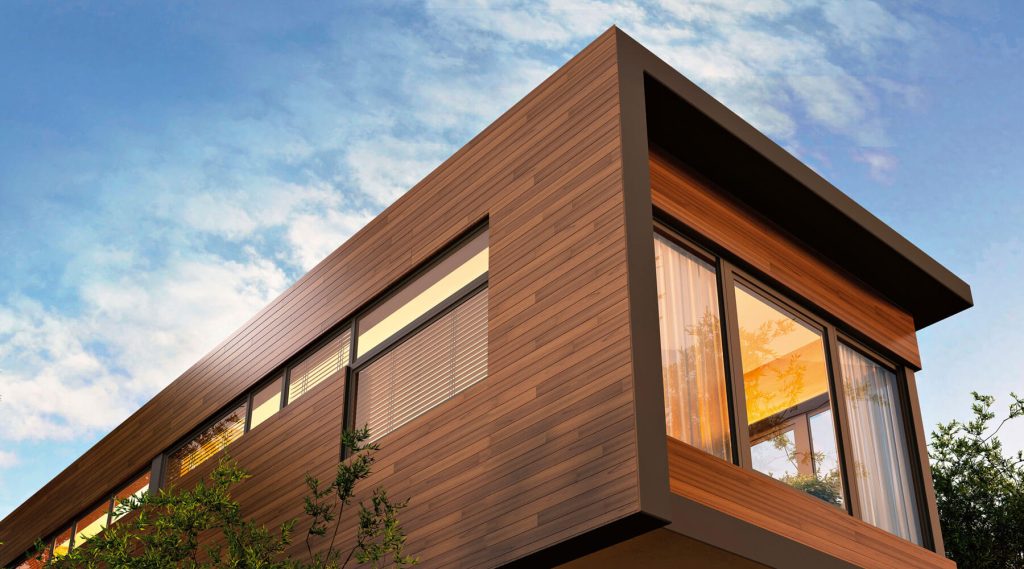

Pre-Rendered EPS Panel System

Pre–Rendered EPS panel is used in this system, panels
are fixed directly on to the timber or steel framed building
having a Weatherproof Breathable wall Wrap (Sarking) in
between. Starter Channel Bead is fixed on to the frame in
required size. The panels are installed horizontally, and
fastened directly into the studs using screws and plastic
washers. The Panel joints are sealed with PU Foam
Adhesive, Corner angle beads are fixed and a 200mm
wide fibreglass mesh is placed over panel joints only, the
panel is rendered and finished as per the GreenClad
coating system consisting of two coats of polymeric
render (base coat) and one coat of acrylic texture coat
having a minimum coating thickness of 6mm

Physical Properties

The Physical properties of GreenClad™ EPS (Expanded Polystyrene) Panel comply with Australian Standard AS1366 Part 3–1992 for Rigid Cellular Polystyrene Moulded Class ‘M’ Grade (Medium Grade); it contains a flame retardant.
